DESIGN DATA

  • 사용유체(Fluid)
    : 압축공기 (Compressed Air)
    입구압력(Inlet Pressure) 7bar
    최대사용압력
    (Max Working Pressure)    		 9.7bar
    차압(Differential Pressure) 0.2bar
  • 입구 온도(Inlet Temp) 38℃
    주위온도(Ambient Temp) 40℃

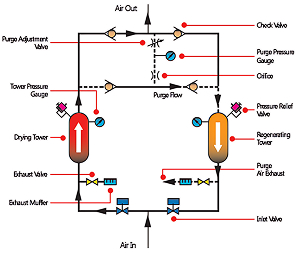

FLOW DIAGRAM

OPTION

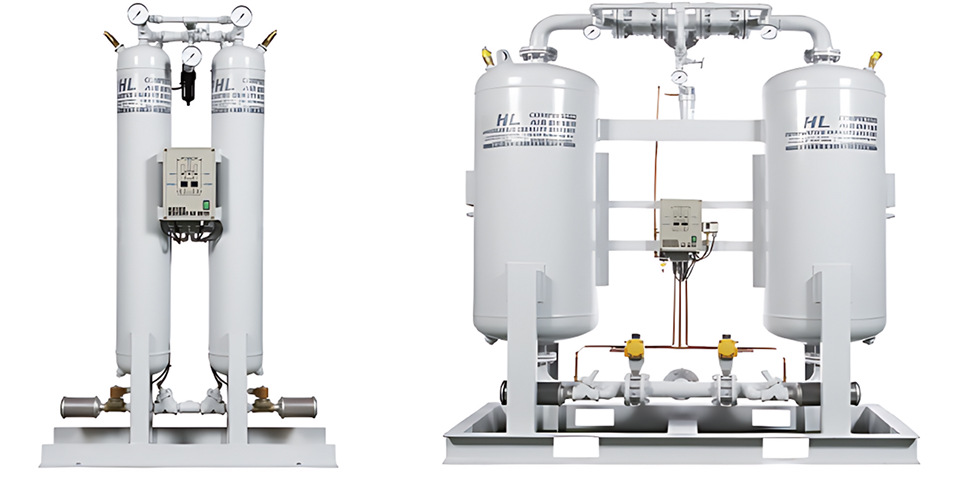

SHL,PHL series

DEW-POINT METER
SUS Material
OVER SIZE
SUS Material
SUS
MATERIAL
SUS Material
HIGH
PRESSURE
High Pressure
Air Compressor (HP) Connection Flow Rate (Nm³/hr) Dimensions (mm) AxBxC Weight (kg) Desiccant / Total
1 PT 15A 10 500x225x745 3 / 23
2 PT 15A 20 500x225x745 4 / 27
3 PT 15A 25 500x225x745 7 / 36
4 PT 15A 35 500x225x745 10 / 46
5 PT 20A 45 840x305x1,010 15 / 102
7 PT 20A 60 840x305x1,240 20 / 123
10 PT 20A 85 840x305x1,535 25 / 136
15 PT 20A 130 1,150x435x1,590 40 / 160
20 PT 25A 170 1,150x435x1,760 50 / 250
25 PT 25A 215 1,150x435x1,760 60 / 260
30 PT 25A 255 1,150x435x1,760 65 / 272
35 PT 40A 300 1,150x485x1,760 75 / 284
40 PT 40A 340 1,150x485x1,760 90 / 306
50 PT 40A 425 1,270x550x1,710 125 / 405
70 PT 40A 595 1,270x585x1,820 175 / 473
100 PT 50A 870 1,400x670x2,090 250 / 650
130 PT 50A 1,110 1,400x745x2,220 325 / 720
160 FLG 65A 1,360 1,500x1,100x2,570 400 / 900
200 FLG 80A 1,700 1,500x1,100x2,590 500 / 1,125
240 FLG 80A 2,040 2,095x890x2,370 600 / 1,305
280 FLG 80A 2,380 2,590x890x2,590 700 / 1,575
320 FLG 100A 2,720 2,590x950x2,760 800 / 1,755
360 FLG 100A 3,060 2,590x950x2,760 860 / 2,205
400 FLG 100A 3,400 2,590x1,060x2,810 1,000 / 2,340
  1. 처리용량은 38°C(100°F), 사용압력 7bar 기준입니다.
  2. 노점은 -40°C의 기본 사양이며, -70°C도 공급 가능합니다.
  3. 전기사양은 220V 1PH 50/60HZ 입니다.
  4. 사양에서 제기된 이상의 대형 기종도 가능합니다.
  5. ASME U Stamp 가능.
  6. 사양은 품질 개선을 위하여 예고 없이 변경될 수 있습니다.
  1. The processing capacity is based on 38°C (100°F) and an operating pressure of 7 bar.
  2. The standard dew point is -40°C, with an option for -70°C available.
  3. Electrical specification: 220V, 1PH, 50/60Hz.
  4. Larger models exceeding the stated specifications are also available.
  5. ASME U Stamp available.
  6. Specifications are subject to change without prior notice for quality improvement.

FACTOR

  • 입구온도 Inlet Temperature

    Temp Factor
    27°C 1.14
    32°C 1.12
    38°C 1.00
    43°C 0.75
    49°C 0.65


    입구압력 Inlet Pressure (bar)

    Press Factor
    2.0 0.40
    4.0 0.55
    5.0 0.76
    7.0 1.00
    8.0 1.16
    9.0 1.24

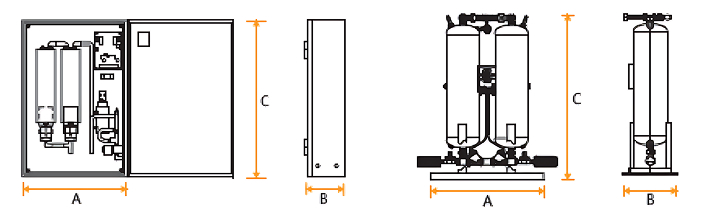

DIMENSION(PHL)

DESIGN DATA

  • 사용유체(Fluid)
    : 압축공기 (Compressed Air)
    입구압력(Inlet Pressure) 7bar
    최대사용압력
    (Max Working Pressure)    		 9.7bar
    차압(Differential Pressure) 0.2bar
  • 입구 온도(Inlet Temp) 38℃
    주위온도(Ambient Temp) 40℃

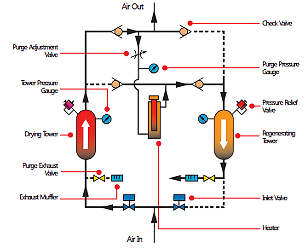

FLOW DIAGRAM

OPTION

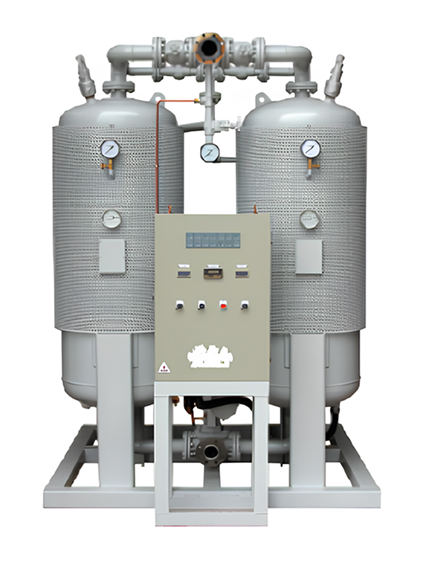

PEH series

DEW-POINT METER
SUS Material
OVER SIZE
SUS Material
SUS
MATERIAL
SUS Material
HIGH
PRESSURE
High Pressure
Air Compressor (HP) Connection Flow Rate (Nm³/hr) Dimensions (mm) AxBxC Weight (kg) Desiccant / Total
1 PT 15A 10 500x225x745 3 / 23
2 PT 15A 20 500x225x745 4 / 27
3 PT 15A 25 500x225x745 7 / 36
4 PT 15A 35 500x225x745 10 / 46
5 PT 20A 45 840x305x1,010 15 / 102
7 PT 20A 60 840x305x1,240 20 / 123
10 PT 20A 85 840x305x1,535 25 / 136
15 PT 20A 130 1,150x435x1,590 40 / 160
20 PT 25A 170 1,150x435x1,760 50 / 250
25 PT 25A 215 1,150x435x1,760 60 / 260
30 PT 25A 255 1,150x435x1,760 65 / 272
35 PT 40A 300 1,150x485x1,760 75 / 284
40 PT 40A 340 1,150x485x1,760 90 / 306
50 PT 40A 425 1,270x550x1,710 125 / 405
70 PT 40A 595 1,270x585x1,820 175 / 473
100 PT 50A 870 1,400x670x2,090 250 / 650
130 PT 50A 1,110 1,400x745x2,220 325 / 720
160 FLG 65A 1,360 1,500x1,100x2,570 400 / 900
200 FLG 80A 1,700 1,500x1,100x2,590 500 / 1,125
240 FLG 80A 2,040 2,095x890x2,370 600 / 1,305
280 FLG 80A 2,380 2,590x890x2,590 700 / 1,575
  1. 처리용량은 38°C(100°F), 사용압력 7bar 기준입니다.
  2. 사양에서 제시된 이상의 대형 기종도 가능합니다.
  3. ASME U Stamp 가능
  4. 사양은 품질 개선을 위하여 예고 없이 변경될 수 있습니다.
  1. Above flow rate is based on 38℃(100℉) and 7bar.
  2. Upon request, customized engineering product is available.
  3. ASME U Stamp (Option)
  4. The specifications can be changed without notice to improve the quality.

FACTOR

  • 입구온도 Inlet Temperature

    Temp Factor
    27°C 1.14
    32°C 1.12
    38°C 1.00
    43°C 0.75
    49°C 0.65


    입구압력 Inlet Pressure (bar)

    Press Factor
    5.0 0.80
    6.0 0.90
    7.0 1.00
    8.0 1.10
    9.0 1.27
    10.0 1.32

CHARACTERISTICS

  1. 메인히터와 보조히터 적용으로 전력비 절감 (Designed with main and sub heater to reduce the power consumption)
  2. 운전상황에 맞도록 공정시간 변경 가능 (Operation cycle time can be managed to optimize the system operation)
  3. 고품질 소음기 사용으로 퍼지소음 최소화 (High quality muffler applied to reduce the purge noise)
  4. 프랑스 AXENS 흡착제 사용으로 안정적인 노점 보장 (By using AXENS(Made in France) Adsorbent, guarantee the stable Dew Point)

DIMENSION(PHL)
